ALDEA EAX 32-10/180

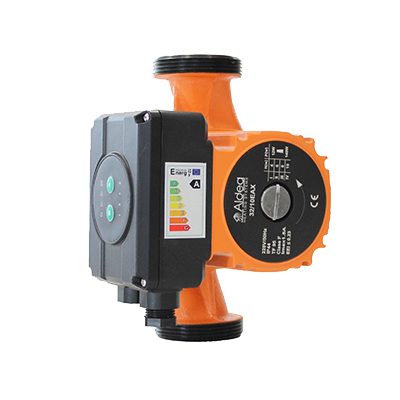

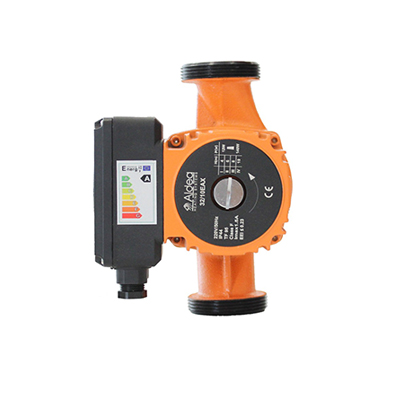

ALDEA EAX 32-10/180 Frequency Control Circulation pump

Our high-efficiency circulation pump provides reliable water circulation in heating and cooling systems. Its compact design and low energy consumption make it ideal for both residential and commercial systems.

MODEL NAME	ALDEA EAX 25-10/180 FREQUENCY CONTROLLED CIRCULATION PUMP
Electricity Supply	Monofaze, 220 ~ 240 / 50Hz
Power	60 W
Max. Flow rate	7.8 m³/sa
Max. Height	10 m
Connection Diameter	25 mm
Pipe	180 mm
Energy Efficiency Index (EEI)	≤0.23

Get an Offer Now Download a Document

It is easy to install and use, and keeps your energy consumption at the lowest level thanks to its class A energy efficiency (EEI≤23).

APPLICATION LIMITS

Liquid temperature: -10℃～110℃

Maximum ambient temperature: +40℃

Maximum system pressure: 10 bar

Protection level: IP44

Mains connection: 230V; 50Hz

Insulation class: F

Characteristic features: Flanged (PN6 and PN10 compatible)

Installation: The motor shaft must be positioned in a horizontal direction

FEATURES and BENEFITS

Class “A” energy efficiency – the lowest energy consumption

Permanent magnet motor – intelligent frequency change control

Display the instantaneous values of power, pressure height, flow rate and engine speed on a large screen

Maximum energy saving with the possibility of adjusting the pressing height with an 0.1 mSS

detection of 15 different errors and quick solution by displaying past errors on the screen

Variable pressure mode

Constant pressure mode

Fixed cycle mode

Low noise, sealing

Cast iron pump body

Aluminum engine body

Stainless steel shaft

Technopolymer impeller

High efficiency

Silent structure with wet rotor
